02 - Run Your First Benchmark

In this small tutorial, we will walk you through setting up your first workflow.

Step 1: Create a GitHub Repository

Start by creating a new GitHub repository. For this guide, name the repository matmul-benchmark and clone it locally.

git clone https://github.com/<your-username>/matmul-benchmark.git
cd matmul-benchmark

Step 2: Add a Benchmark (C Example)

We will benchmark a simple C program performing a matrix multiplication. Create a file named matmul.c at the root of your repository with the following content:

#include <stdio.h>
#include <stdlib.h>
#include <time.h>

#define SIZE 500

void matmul(double *A, double *B, double *C, int size) {
    for (int i = 0; i < size; i++)
        for (int j = 0; j < size; j++) {
            C[i*size + j] = 0.0;
            for (int k = 0; k < size; k++)
                C[i*size + j] += A[i*size + k] * B[k*size + j];
        }
}

int main() {
    double *A = malloc(SIZE * SIZE * sizeof(double));
    double *B = malloc(SIZE * SIZE * sizeof(double));
    double *C = malloc(SIZE * SIZE * sizeof(double));

    srand(time(NULL));
    for (int i = 0; i < SIZE*SIZE; i++) {
        A[i] = (double)rand() / RAND_MAX;
        B[i] = (double)rand() / RAND_MAX;
    }

    matmul(A, B, C, SIZE);

    printf("Result[0]=%f\n", C[0]);

    free(A);
    free(B);
    free(C);

    return 0;
}

Step 3: Define a Workflow

Create a directory called .daisy/ at the root of your repository:

mkdir .daisy

Inside .daisy/, create a workflow file named benchmark.yml with the following minimal configuration:

on:
  push:
    branches:
      - main

parameters:
  partitions:
    - bellis4

steps:
  build: |
    # Update and install dependencies
    sudo apt-get update
    sudo apt-get install -y build-essential

    # Compile the benchmark
    gcc -O2 -g matmul.c -o matmul.out

  run:
    matmul:
      command: ./matmul.out
      measurements: 1

This workflow

• triggers automatically upon every push to the main branch.
• runs your benchmark on the bellis4 partition of our cluster.
• measures the benchmark’s runtime.

Step 4: Commit and Push the Changes

Commit the files and push them to GitHub:

git add matmul.c .daisy/benchmark.yml
git commit -m "Add matmul benchmark and workflow"
git push origin main

Step 5: Run Your First Benchmark

After pushing your changes, Daisytuner will automatically detect your workflow and execute your benchmark on our cluster.

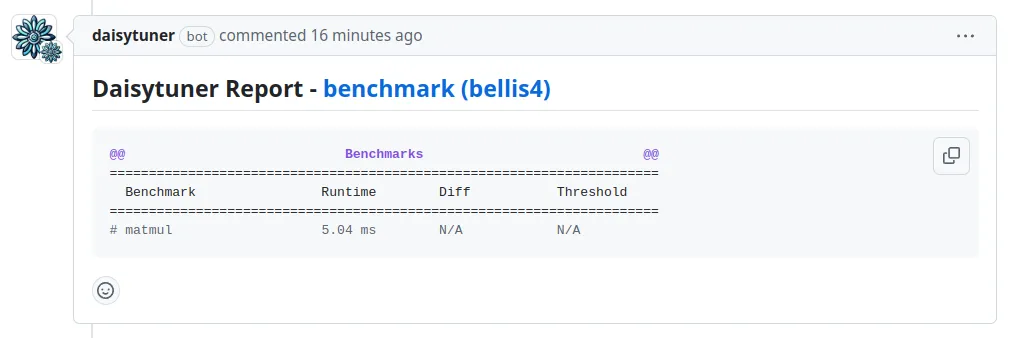

You can track progress in two places:

• GitHub: Status checks will appear directly.

• Dashboard: Real-time logs and status updates can be found here. Make sure you are logged into the app with your Github account.

Congratulations! 🎉 You have successfully run your first benchmark using Daisytuner.
